【專利核准公告】P99020A-四相位壓控振盪器「QUADRATURE VOLTAGE-CONTROLLED OSCILLATOR AND METHOD OF PROVIDING FOUR-PHASE OUTPUT SIGNALS」(已終止維護)
|
專利國別 |
美國 |
發表日期 |
2013-09-24 11:51:50 |
|
本校案號 |
P99020A |
||
|
專利名稱 |
四相位壓控振盪器「QUADRATURE VOLTAGE-CONTROLLED OSCILLATOR AND METHOD OF PROVIDING FOUR-PHASE OUTPUT SIGNALS」 |
||
|
發明人 |
李順裕、王量弘、林于恆 |
||
|
所屬院 |
工學院 |
提案單位 |
電機工程學系暨研究所 |
|
類型 |
發明 |
專利權人 |
國立中正大學 |
|
申請號 |
13/152,793 |
申請日期 |
2011-06-03 |
|
公開號 |
0 |
公開日期 |
2012-07-19 |
|
證書號 |
US 8,456,246 B2 |
核准日期 |
2013-06-04 |
|
國際分類號 |
H03B-005/12(2006.01)；H03B-027/00(2006.01)；H03C-003/20(2006.01) |
||
|
專利權期間 |
2011.06.03~2031.06.03(延長129天至2031.10.10) |
||
|
專利摘要 |

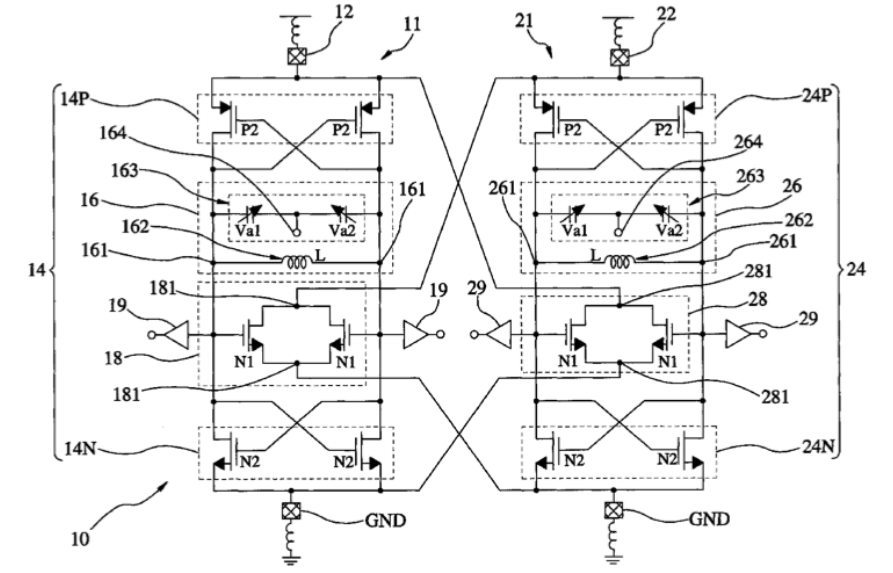

A quadrature VCO in includes a first oscillator unit and a second oscillator unit. Each of the first and second oscillator unit is composed of a DC bias source, a complementary cross-couple pair, an LC resonator unit, a frequency-doubling sub-harmonic coupler unit, and a ground terminal. When the LC resonator units of the first and second oscillator units are operated, four signals of difference phases can be outputted via the output terminals. In this way, the output phase difference of the two oscillator units can keep 180 degrees and allow the two oscillator units to mutually inject signals to generate quadrature output signals. |
||
|
