【專利核准公告】P98030A-定域電漿共振感測裝置「LOCALIZED PLASMON RESONANCE SENSING DEVICE AND FIBER OPTIC STRUCTURE」(已終止維護)
|
專利國別 |
美國 |
發表日期 |
2014-08-14 10:13:43 |
|
本校案號 |
P98030A |
||
|
專利名稱 |
定域電漿共振感測裝置「LOCALIZED PLASMON RESONANCE SENSING DEVICE AND FIBER OPTIC STRUCTURE」 |
||
|
發明人 |
周禮君、吳瑋特、曹子謙、陳建興、利宛芸 |
||
|
所屬院 |
工學院 |
提案單位 |
化學工程學系暨研究所 |
|
類型 |
發明 |
專利權人 |
國立中正大學 |
|
申請號 |
12/798,056 |
申請日期 |
2010-03-29 |
|
公開號 |
US20110069316A1 |
公開日期 |
2011-04-24 |
|
證書號 |
US 8,355,134 B2 |
核准日期 |
2013-01-15 |
|
國際分類號 |
G01N-021/55(2006.01)；G02B-006/02(2006.01) |
||
|
專利權期間 |
2010.03.29~2030.03.29(延長388天至2031.04.21) |
||
|
專利摘要 |
The present invention discloses a localized plasmon resonance sensing device and a fiber optic structure. The device comprises an optical fiber and a noble metal nanoparticle layer The optical fiber has a plurality of notches,and such notches are located on the side surface of the optical fiber.The noble metal nanoparticle layer is located at the notch. As a result,when a light is launched into the optical fiber,a detecting unit can be used to detect a localized plasmon resonance signal which is generated by the interaction between the noble metal nanoparticle layer and the light. |
||
|

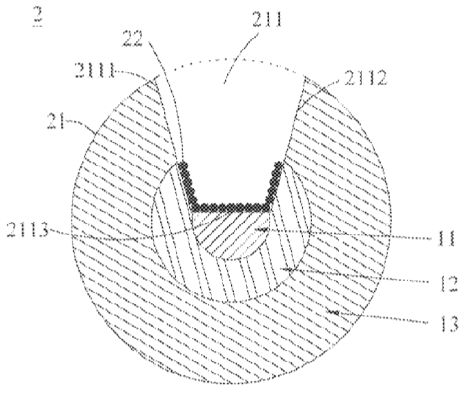

圖示 |
|||
