專利國別

  美國

發表日期

2019-09-05 16:13:43

本校案號

P105018A

專利名稱

切削加工轉速調整裝置及方法「SPINDLE SPEED ADJUSTING DEVICE IN MACHINING AND METHOD THEREOF」

發明人

鄭志鈞、蔡秉均、程文男、郭育昕、鄭尹俊、邱昱阩

所屬院

工學院

提案單位

先進工具機研究中心

類型

發明

專利權人

國立中正大學

申請號

15/600,865

申請日期

2017-05-22

公開號

US 2018-0130489 A1

公開日期

2018-05-10

證書號

US 10,220,480 B2

核准日期

2019-03-05

國際分類號

B23Q-015/12(2006.01)；B23Q-017/09(2006.01)；G05B-019/401(2006.01)

專利權期間

2017.05.22~2037.05.22

專利摘要

A spindle speed adjusting device in machining is provided, which may include a plurality of signal detection modules, a signal capturing module and a signal processing module. Each of the signal detection modules may keep measuring the vibration signals in machining. The signal capturing module may capture the vibration signals. The signal processing module may execute a transmissibility analysis to obtain the transmissibility between the signal detection modules, and execute a frequency response fitting according to the transmissibility to obtain a plurality of system dynamic parameters, and then execute a stability lobe diagram analysis to calculate the optimized spindle speed of the machining tool so as to make the machining tool operate at the optimized spindle speed. The signal processing module may repeatedly execute the transmissibility analysis, the frequency response fitting and the stability lobe diagram analysis to keep updating the optimized spindle speed until the machining process ends.

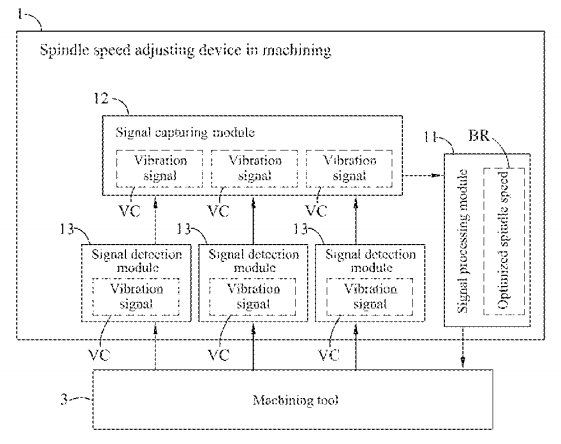

圖示
